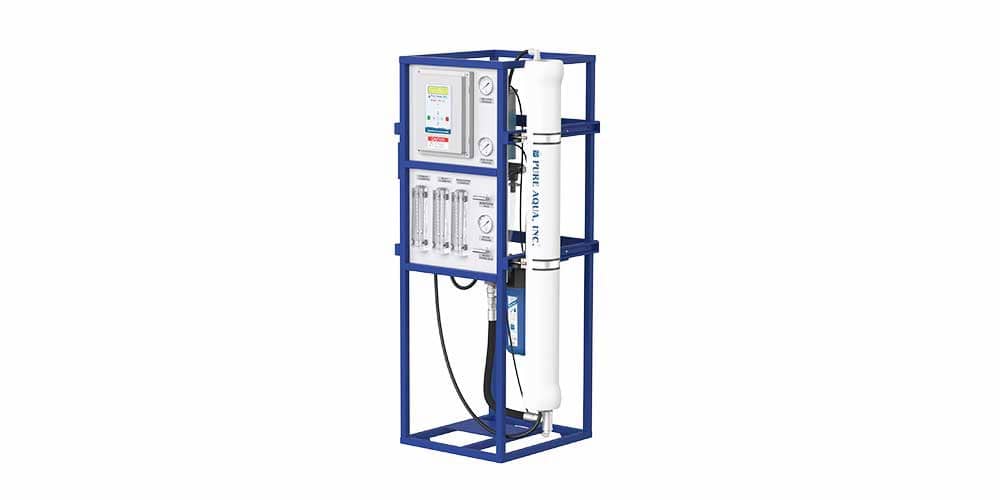

Commercial Reverse Osmosis RO Systems RO-200

18 product reviews
Product Description

Pure Aqua’s commercial reverse osmosis systems “RO-200 series” is a compact and energy-efficient commercial RO unit, designed ideally for tap, brackish and drinking water treatment applications. Our small commercial reverse osmosis equipment is capable of reaching incredibly high recovery rates.

Pure Aqua is a global supplier for a full line of pre-engineered and custom reverse osmosis systems for commercial use, ranging from 600 to 15,000 GPD, These commercial RO systems produce high-quality water at a very low cost, all of which are engineered using advanced 3D computer modeling and process design software for accurate and customized solutions.

  • Commercial Reverse Osmosis RO Water Treatment Process:

Skid mounted commercial reverse osmosis plants are tasked with purifying water from water sources such as lakes, rivers, well, and even the sea. These RO machines utilize a high pressure pump that pressurizes brackish or sea water against the surface of a semi-permeable membrane containing small pores. Water molecules are only permitted to flow through the small pores while blocking impurities such as salt, particles, minerals, and other organics from passing through. These small pores have a strong capability of rejecting bacteria and disease-causing pathogens. At the end of this process, clean, purified water emerges on the lower-pressured side while salts, minerals, and other organics are sent into the brine stream then into a drain.

  • Custom & High Capacity Commercial Reverse Osmosis Filtration Systems:

Our RO-200 series commercial reverse osmosis units are manufactured to be with user-friendly, environmental friendly, long-term reliability, and robust construction in mind.

The RO-200 series can be customized based on individual design needs to include chemical dosing, cleaning skids, antiscalant, filters and more. These reverse osmosis machines can accommodate between 600 to 15,000 GPD, with feed water TDS of 1,000 to 5,000 ppm. These features have the capability of removing hardness, chlorine, odors, color, iron, and sulfur. Economical and efficient, RO-200 commercial reverse osmosis machines acquire the latest in reverse osmosis technology to remove dissolved salts, particles, organics, minerals, solids and other contaminants from water with a molecular weight greater than 150-250 Dalton. Pure Aqua uses the most efficient, energy saving, high rejection membranes made by Dow Filmtec, Hydranautics, Toray (USA made).

  • Commercial Reverse osmosis System Schematic Diagram:

commercial reverse osmosis RO systems schematic diagram



This commercial RO system schematic is demonstrating the following:

1

Feed raw water

2

Pre-chlorination dosing system

3

Raw water storage tank

4

Feed and backwash pump

5

Multi media filter for turbidity and suspended solids reduction

6

Green sand filter for iron and manganese reduction (when Fe or Mn is high)

7

Activated carbon filter for chlorine, odor, taste, organic removal

8

Birm filter for iron and manganese reduction (when Fe or Mn is low)

9

Water softener for hardness reduction

10

Antiscalant dosing system

11

Dechlorination dosing system

12

Commercial reverse osmosis system

13

Ultraviolet sterilizer UV system

14

Calcite filter for post pH neutralization

15

Post chlorination dosing

16

Product water tank

17

Repressurization pump

18

Treated water to use



  • Commercial Reverse Osmosis System Buying Guide:

Choosing the correct RO-200 model is simple. The following information must be provided:

- Flow rate (GPD, m3/day, etc.)

- Feed water TDS and water analysis: this information is important to prevent membranes from fouling, as well as help us choose the correct pre-treatment.

- Iron and manganese must be removed before the water enters reverse osmosis unit

- TSS must be removed before commercial RO system

- SDI must be less than 3

- Water should be free from oil and grease

- Chlorine must be removed

-  Available voltage, phase, and frequency

-  Dimensions of proposed area where commercial RO System will be installed

  •  Commercial Reverse Osmosis System Cost:

Commercial RO system cost depends on the pre and post-treatment equipment selected; such as:

a)    Prechlorination dosing

b)    Media filter

c) Carbon filter

d) Water softener

e) Antiscalant dosing

f)  NSF components

g) Advanced controller

h) Advanced instruments

i) Iron removal filter

j) High TDS application

k) Skid mounted system

l)  Calcite filter

m) Blending systems

n) Three phase system

o) Variable frequency drive VFD

  [custom-specifications]

commercial reverse osmosis systems specifications

Operation Specifications

  • Max. feed water temperature: 42°C

  • Equipment upgrade for TDS up to 5,000 ppm

  • Hydrogen Sulfide must be removed

  • Max. Silica tolerance: 25 ppm @ 60% recovery

  • Feed water TDS: 0-2,000 ppm

  • Operating pressure: 150 to 250 psi

  • pH tolerance range: 3-11

  • Max. Iron content: 0.05 ppm

  • Feed water pressure: 20 to 80 psi

  • Hardness over 1 GPG requires water softener

  • Turbidity should be removed

  • Operate at higher TDS by lowering recovery

Commercial Brackish RO Systems RO-200 Series

Model Number

Permeate Flow Rate

Membranes

Motor Rating at 1,000 ppm

GPD

M3/D

Size

Qty.

60Hz (hp)

50Hz (kw)

TW-0.6K-125

600

2

2.5"x40"

1

1/2

1/2

TW-1.2K-225

1,200

5

2.5"x40"

2

1/2

1/2

TW-1.8K-325

1,800

7

2.5"x40"

3

3/4

3/4

TW-1.5K-140

1,500

6

4"x40"

1

1

1

TW-3.0K-240

3,000

11

4"x40"

2

1

1

TW-4.5K-340

4,500

17

4"x40"

3

1.5

1.5

TW-6.0K-440

6,000

23

4"x40"

4

1.5

1.5

TW-7.5K-540

7,500

28

4"x40"

5

2

2

TW-9.0K-640

9,000

34

4"x40"

6

2

2

TW-12.0K-840

12,000

45

4"x40"

8

3

3

TW-15.0K-1040

15,000

57

4"x40”

10

3

3

For more information, please view/download "commercial reverse osmosis RO systems data sheet"

Note: If the feed water TDS exceeds 2,000 ppm, the system model number changes to BW-XXXK-XXXX, and a suffix is added to the end of the model number: “-5” is added if the TDS is 5,000 ppm or less. Example: Required system to produce 9,000 GPD with a feed water TDS of 5,000 ppm, the corresponding model number is: “BW-9.0K-640-5”.

[/custom-specifications]
[custom-features]
commercial reverse osmosis systems features

Standard Features:

Available Options:

  • 2.5"/4" TFC spiral wound membranes

  • Heavy duty high pressure tubing

  • Low pressure switch

  • Product and reject flow meters

  • Electric inlet solenoid valve

  • Corrosion resistant high pressure throttling valve

  • Pretreatment lockout

  • Factory tested

  • Powder coated carbon steel frame

  • Corrosion resistant high pressure pump

  • 220V/1Ph/60Hz power supply

  • Pre/post-treatment and pump pressure gauges

  • Recycle valve (standard up to 4.5K GPD)

  • FRP/SS pressure vessel

  • Tagging and identification of instrumentation

  • Heavy duty 5 micron cartridge pre-filter

  • Automatic flush

  • Pre piped skid system

  • Blending: feed/product

  • Tank float switch

  • Recycle flow meter

  • Post DI polishers

  • 380-415V/3Ph/50Hz power supply

  • 220-240V/1Ph/50Hz power supply

  • 220V or 460v 3Ph/60Hz power supply

  • Water softeners

  • Ozonation system / UV sterilizers

  • Media filters

  • pH or ORP meter

  • High pressure switch

  • Export wood crating

[/custom-features]
[custom-usage]

Commercial reverse osmosis plants are built using 4” TFC spiral wound membranes, commercial water pumps and microprocessor based control panels. The ideal application for a commercial RO water filter systems include:

  • Metal Finishing

  • Beverage Production and Bottled Water

  • Electronics

  • Pharmaceutical

  • Mining Industry

  • Chemical Blending

  • Safe Drinking Water

  • Rinse Water

  • Power Plants

  • Plating Operations

  • EDI Pre-treatment

  • Food and Beverage

  • Spot Free Product Rinse

  • Cooling Towers

  • Laboratory

  • Boiler Feed Water

  • Ice Manufacturing

  • Ion Exchange Pre-treatment

[/custom-usage]
Product Specifications
Product Features
Product Usage
Product Documents & Data Sheets
Product Videos
Pure Aqua| Commercial BWRO Device El Salvador 7,500 GPD 01:18

Pure Aqua, Inc. designs and manufactures water treatment systems in addition to commercial BWRO devices. In August 2010, Pure Aqua, Inc. manufactured and supplied a commercial BWRO device a major company in El Salvador. The purpose to lower TDS and concentration of particular minerals from municipal tap water feed of about 500 ppm TDS. The product is expected to have a TDS of 10 ppm or less. This device has a unique blending feature which raw feed water at a certain percent is mixed with product water to generate water with desired minerals. For more information click here: http://www.pureaqua.com/brackish-water-ro.html

Product Reviews
Write Review

Showing reviews 1-5 of 18 | Next

  1. We have received very good reviews about our water, which is sold very successfully.

    Posted by Alberto F.

    I acquired from your company, On December of 2015, a complete system for water purification with a RO system, Model TW-12.OK 840 and some other stuff.

    Regarding all above, I want to let you know that everything is working excellently, the results are incredible, it couldn´t be any better. We have received very good reviews about our water, which is sold very successfully.

    For this reason, we were invited to participate in a local exposition to introduce our product. Clearly, the quality and configuration of the equipment you manufactured us, it is largely the reason of the success of our water. Because of that, we want to highlight this equipment, to do so, we request your collaboration with some graphic material (corporate video), preferably in Spanish to be displayed on our stand. This video has to shown the fabrication process and the technology used, or any other relevant information about the equipment that we own.


    We trust in your cooperation and mutual support.

  2. Efficient!!

    Posted by Scott R.

    Our apartment complex bought 2 units of BW-15K-1040 to treat well water and supply the tenants with better quality water. It is more efficient than providing each unit with an under–the-sink RO system. We bought 2 just for redundancy purposes.

  3. Good quality water

    Posted by Frank A.

    We have a small steam boiler which needed a better feed water so we worked with Pure Aqua and they provided us with BW-7.5K-540 system. Boiler is running efficiently and RO is consistent in producing good quality water.

  4. Works well.

    Posted by Gary H.

    Bought a TW-4.5K-340 for our small water business. The system is a space saver and the frame is sturdy. Works well.

  5. Simple to use

    Posted by Brian D.

    We needed a BWRO system for our family cottage and bought the TW-1.2K-225 from Pure Aqua. Simple to use and provides fresh water from a well inside the property.

Showing reviews 1-5 of 18 | Next
