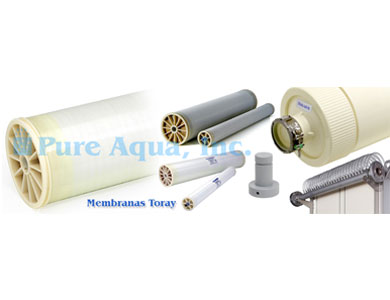

Toray TM720-440 Membrane

Product Description

Following TM720-440 membranes can be used in multiple membrane systems to treat municipal industrial or process water as well as commercial application using the 8” membrane types.
For individual membrane selection by application or membrane type please use the membrane product search feature.

Toray TM720-440 Membranes

Membrane Type

  • Cross Linked Fully Aromatic Polyamide Composite

Test Conditions

  • Feed Water Pressure: 225 psi(1.55MPa)
  • Feed Water Temperature: 77°F(25℃)
  • Feed Water Concentration: 2,000 mg/l Nacl
  • Recovery Rate: 15%
  • Feed Water pH: 7
  • Minimum Salt Rejection: 99.0%
Minimum Product Flow Rate
  • 2,000gpd(7.6m3/d)(TM710)
  • 7,500gpd(28.4m3/d)(TM720-370)
  • 8,200gpd(31.0m3/d)(TM720-400)
  • 9,000gpd(34.1m3/d)(TM720-440)
[custom-specifications]

Specifications:

Type

Diameter Inch

Membrane Area ft2(m2)

Salt Rejection %

Product Flow Rate gpd(m3/d)

Feed Spacer Thickness mil

TM720-440

8”

440(41)

99.7

11,300(42.6)

28

[/custom-specifications]
[custom-features]

Features

Operating Limits

  • Maximum Operating Pressure: 600psi (4.1 MPa)
  • Maximum Feed Water Temperature: 113°F (45)
  • Maximum Feed Water SDI15: 5
  • Feed Water Chlorine Concentration: Not Detectable
  • Feed Water pH Range, Continuous Operation: 2-11
  • Feed Water pH Range, Chemical Cleaning: 1-12
  • Maximum Pressure Drop per Element: 20psi (0.14 MPa)
  • Maximum Pressure Drop per Vessel: 60psi (0.4 MPa)



[/custom-features]
[custom-usage] [/custom-usage]
[custom-documents]Toray TM720-440 Membrane [/custom-documents]
