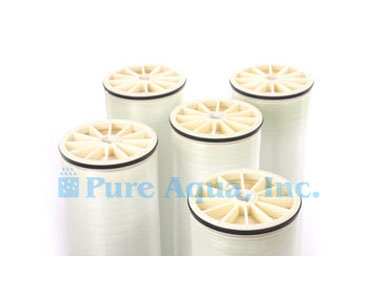

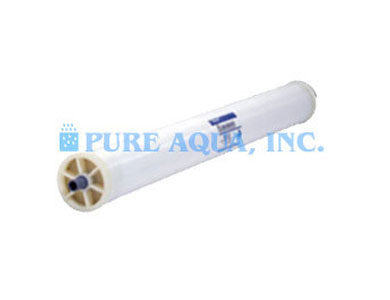

Toray TM710D Membrane

Product Description

Following TM710D membranes can be used in multiple membrane systems to treat municipal industrial or process water as well as commercial application using the 4” membrane types.
For individual membrane selection by application or membrane type please use the membrane product search feature

Uses for Membranes TM710D

1. Membrane Type



Cross Linked Fully Aromatic Polyamide Composite

2. Test Conditions



Feed Water Pressure Feed Water Temperature Feed Water Concentration Recovery Rate

Feed Water pH



225 psi(1.55MPa)

77°F(25℃)

2,000 mg/l NaCl

15%

7

3. Minimum Salt Rejection



99.65%

4. Minimum Product Flow Rate





2,150gpd(8.2m3/d)(TM710D)

8,900gpd(33.6m3/d)(TM720DA400)

8,900gpd(33.6m3/d)(TM720D-400)

9,800gpd(37.0m3/d)(TM720D-440)

[custom-specifications]

Specifications:

Type

Diameter

Inch

Membrane Area ft2(m2)

Salt Rejection %

Product Flow Rate gpd(m3/d)

Feed Spacer Thickness mil

TM710D

4”

87(8)

99.8

2,600(9.8)

31

[/custom-specifications]
[custom-features]

Features

Operating Limits

  • Maximum Operating Pressure: 600psi (4.1 MPa)

  • Maximum Feed Water Temperature: 113°F (45℃)

  • Maximum Feed Water SDI15: 5

  • Feed Water Chlorine Concentration: <0.1ppm

  • Feed Water pH Range, Continuous Operation: 2-11

  • Feed Water pH Range, Chemical Cleaning: 1-13

  • Maximum Pressure Drop per Element: 20psi (0.14 MPa)

  • Maximum Pressure Drop per Vessel: 60psi (0.4 MPa)

[/custom-features]
[custom-usage] [/custom-usage]
[custom-documents]Toray TM710D Membrane [/custom-documents]
