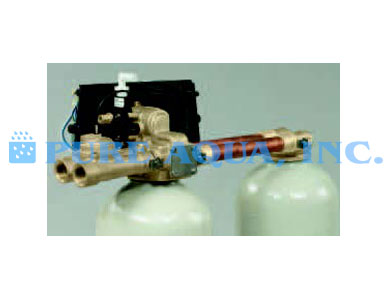

Fleck 9000 Control Valve

Product Description

At Pure Aqua Inc., you will find a great variety of fleck valves products such as Fleck 5600, 2750, 9000, 9100, 9500, 3150, 3900, 2850. For more than 50 years, Fleck has led the way in advancing control valve technology for water treatment, softening and filtration applications. Fleck offers more than 20 models with 90 different options and over 1,000 configurations.

The Fleck 9000 is the commercial version of the 9500 valve. Twin-tank design means that soft water is available at all times. Five-cycle control delivers controlled upflow backwash, downflow brining, slow rinse, rapid rinse and timed brine refill, are all performed with conditioned water. The most salt-efficient valve available because you don't need to program in a reserve. Regenerates immediately when needed, as often as every 90 minutes if required. Continuous flow rates up to 21 gpm, 289 gpm peak. Handles softeners up to 16" in diameter.

How to Order Fleck Valve?

  • Specify the valve needed is for back wash filter or water softener.
  • Specify the flow rate needed for your application
  • Specify the size of tank being used when ordering to ensure proper flow restrictor sizing.
  • Fleck valve has different option, please discuss your application with Pure Aqua representative to offer the best options to fit your application.



[custom-specifications]

Valve Specifications:

Valve material

Lead-free brass

Inlet/Outlet

3/4", 1" or 1-1/4"

Cycles

5



Flow Rates (50 psi Inlet) - Valve with meter:

Flow rate

1" meter

3/4" meter

3/4" turbine

Continuous (15 psi drop)

21 GPM

18 GPM

19 GPM

Peak (25 psi drop)

28 GPM

24 GPM

25 GPM

Cv (flow at 1 psi drop)

5.1

4.8

5

Max. backwash (25 psi drop)

8.5 GPM

8.5 GPM

8.5 GPM



Regeneration:

Downflow/Upflow

Downflow only

Adjustable cycles

Yes



Time available

SXT: 0-199 minutes per cycle

XT: 0-240 minutes per cycle



Meter Information

Meter accuracy:

1"

.7 - 40 GPM +/- 5%

3/4"

.25 - 15 GPM +/- 5%



Meter capacity range (gal.):





1"

Standard: 310 - 5,270

Extended: 1,550 - 26,350

SXT: 1 - 999,900

XT: 1,000 - 9,900,000



3/4"

Standard: 125 - 2,125

Extended: 625 - 10,625

SXT: 1 - 999,900

XT: 1,000 - 9,900,000



Dimensions:

Distributor pilot

1.05" O.D.

Drain line

1/2" NPT

Injector brine system

1600

Brine line

3/8"

Mounting base

2-1/2" - 8 NPSM

Height from top of tank

6-1/2"



Typical Applications:

Water softener 6" - 16" diameter



Additional Information:

Electrical rating

24 v, 110 v, 220 v - 50 Hz, 60 Hz



Estimated shipping weight

3/4" Metered valve: 19 lbs.

1" Metered valve: 23 lbs.



Pressure

Hydrostatic: 300 psi

Working: 20 - 125 psi



Temperature

34o - 110o F (cold water)

34o - 180o F (hot water)

Approvals:

NSF Standard 44 Certified:  1 - 4 cu. ft.

* As defined in the U.S. EPA Safe Drinking Water Act product

also meets California Proposition 65 Standards



[/custom-specifications]
[custom-features]

Fleck 9000 - Residential Twin Tank Control Valve

Features:
  • Fully adjustable 5-cycle control delivers controlled upflow backwash, downflow brining, slow rinse, rapid rinse, timed brine refill and downflow service
  • Perfect for light commercial/heavy residential systems that require twin tank conditioning capabilities
  • Continuous flow rate of 21 GPM
  • All cycles are easily adjustable; program only necessary functions with "all cycle" variable time control
  • Backwash capacity handles tanks up to 16"
  • Choice of 3/4" or 1" meter satisfies wide range of operational needs
  • Valve delivers continuous softened water
  • Salt and water savings by using 100% capacity of the tank in service before switching to the second tank
  • Regenerates immediately when needed for continuous soft water
  • Regenerates with soft water and keeps system clean for optimum operating efficiency and minimum maintenance

Options:

  • Bypass valve (Fiber-reinforced polymer or lead-free brass*)
  • Hot water (150°F max., 1" only)
  • Electronic timer, SXT or XT
  • Window cover
  • Auxiliary switches









[/custom-features]
[custom-usage]

Applications:
  • Commercial Twin Water Softener
  • Industrial Twin Water Softener
  • Nitrate Removal System
  • Iron Removal System
[/custom-usage]
[custom-documents]Fleck 9000 Spec Sheet
Fleck 9000 Service Manual[/custom-documents]
