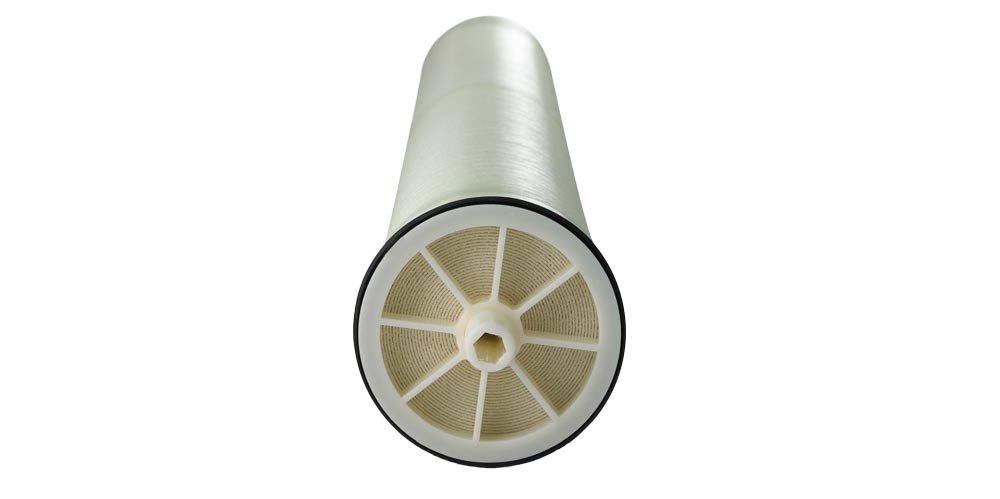

DOW FILMTEC SW30HR LE-4040 Membrane

Product Description

DOW FILMTEC SW30HRLE-4040 is a four-inch diameter version of SW30HRLE-400, one of the industry's leading seawater elements, which offers an unprecedented combination of high salt rejection and productivity to enable the low total cost of purifying high salinity water. FILMTEC SW30HRLE-4040 elements deliver high performance over the operating lifetime without the use of oxidative post-treatements and high sodium chloride and boron rejection to help meet World Health Organization (WHO) and other drinking water standards. FILMTEC SW30HRLE-4040 may be used as a pilot element to demonstrate performance for the design of larger systems.

FILMTEC SW30HRLE-4040 Membrane Elements

Advantages

  • High flux reduces energy use or pressure required;
  • good rejection results in good quality water;
  • high boron rejection;
  • Filmtec performance and quality

Proper start-up of reverse osmosis water treatment systems is essential to prepare the membranes for operating service and to prevent membrane damage due to overfeeding or hydraulic shock. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved.
Before initiating system start-up procedures, membrane pretreatment, loading of the membrane elements, instrument calibration and other system checks should be completed.
Please refer to the application information literature entitled “Start-Up Sequence” (Form No. 609-02077) for more information.

Operation Guidelines

Avoid any abrupt pressure or cross-flow variations on the spiral elements during start-up, shutdown, cleaning or other sequences to prevent possible membrane damage. During start-up, a gradual change from a standstill to operating state is recommended as follows:

  • Feed pressure should be increased gradually over a 30-60 second time frame.
  • Cross-flow velocity at set operating point should be achieved gradually over 15-20 seconds.
  • Permeate obtained from first hour of operation should be discarded.

General Information

  • Keep elements moist at all times after initial wetting.
  • If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty will be null and void.
  • To prevent biological growth during prolonged system shutdowns, it is recommended that membrane elements be immersed in a preservative solution.
  • The customer is fully responsible for the effects of incompatible chemicals and lubricants on elements.
  • Maximum pressure drop across an entire pressure vessel (housing) is 50 psi (3.4 bar).
  • Avoid static permeate-side backpressure at all times.
[custom-specifications]

Specifications

Product Part Number Active Area ft2 (m2) Permeate Flow Rate gpd (m3/d) Minimum Salt Rejection % Stabilized Salt Rejection %
SW30HR LE-4040 255048 85 (7.9) 1,600 (6.1) 99.6 99.75
[/custom-specifications]
[custom-features]

Features

DOW FILMTEC™ SW30HR LE-4040 reverse osmosis element is a four-inch diameter version of SW30HR LE-400, the industry’s leading seawater element which offers an unprecedented combination of high salt rejection and productivity to enable the lowest total cost of purifying high salinity water.

  • SW30HR LE-4040 may be used as a pilot element to demonstrate performance for the design of larger systems.
  • SW30HR LE-4040 delivers the highest sodium chloride and boron rejection to help meet World Health Organization (WHO) and other drinking water standards.
  • SW30HR LE-4040 elements deliver high performance over the operating lifetime without the use of oxidative post-treatments like many competitive products. This is one reason DOW FILMTEC elements are more durable and may be cleaned more effectively over a wider pH range (1-13) than other RO elements.

Operating Limits

  • Membrane Type Polyamide Thin-Film Composite
  • Maximum Operating Temperature 113ºF (45ºC)
  • Maximum Operating Pressure 1,200 psig (83 bar)
  • Maximum Element Pressure Drop 15 psig (1.0 bar)
  • pH Range, Continuous Operation 2 - 11
  • pH Range, Short-Term Cleaning (30 min.) 1 - 13
  • Maximum Feed Silt Density Index (SDI) SDI 5
  • Free Chlorine Tolerance <0.1 ppm
[/custom-features]
[custom-usage]
The ideal applications of FILMTEC SW30HRLE-4040 Membrane Elements include:
  • Seawater desalination
  • Municipal drinking water
  • industrial desalination
[/custom-usage]
