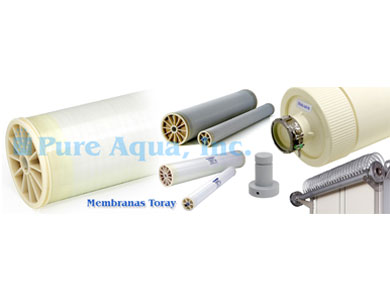

Toray TMG10 Membrane

Product Description

Following TMG10 membranes can be used in multiple membrane systems to treat municipal industrial or process water as well as commercial application using the 4” membrane types.
For individual membrane selection by application or membrane type please use the membrane product search feature

1. Membrane Type



Cross Linked Fully Aromatic Polyamide Composite

2. Test Conditions



Feed Water Pressure

Feed Water Temperature

Feed Water

Concentration Recovery Rate

Feed Water pH



110 psi(0.76MPa)

77°F(25℃)

500 mg/l Nacl

15%

7

3. Minimum Salt Rejection



99.0%

4. Minimum Product Flow Rate



2,000gpd(7.6m3/d)(TMG10)

7,500gpd(28.4m3/d)(TMG20-370)

8,200gpd(31.0m3/d)(TMG20-400)

[custom-specifications]

Type

Diameter

Inch

Membrane Area ft2(m2)

Salt Rejection

%

Product Flow Rate gpd(m3/d)

Feed Spacer

Thickness mil

TMG10

4”

87(8)

99.5

2,400(9.1)

31

[/custom-specifications]
[custom-features]

Operating Limits:

  • Maximum Operating Pressure: 365psi (2.5 MPa)
  • Maximum Feed Water Temperature: 113°F (45)
  • Maximum Feed Water SDI15: 5
  • Feed Water Chlorine Concentration: Not Detactable
  • Feed Water pH Range, Continuous Operation: 2-11
  • Feed Water pH Range, Chemical Cleaning: 1-12
  • Maximum Pressure Drop per Element: 20psi (0.14 MPa)
  • Maximum Pressure Drop per Vessel: 60psi (0.4 MPa)
[/custom-features]
[custom-usage] [/custom-usage]
[custom-documents]Toray TMG10 Membrane [/custom-documents]
