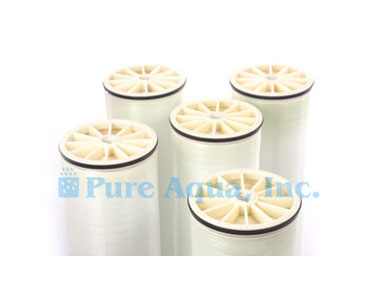

Toray TM810V Membrane

Product Description

Membrane Type

  • Cross Linked Fully Aromatic Polyamide Composite

Test Conditions

  • Feed Water Pressure: 800 psi(5.52MPa)
  • Feed Water Temperature: 77°F(25℃)
  • Feed Water Concentration: 32,000 mg/l Nacl
  • Recovery Rate: 8%
  • Feed Water pH: 8
  • Minimum Salt Rejection: 99.5%
Minimum Product Flow Rate
  • 1,550gpd(5.9m3/d)(TM810V)
  • Boron Rejection 92% at pH 8 (5 mg/l Boron added to feed water)



[custom-specifications]

Type

Diameter Inch

Membrane Area ft2(m2)

Salt Rejection %

Product Flow Rate gpd(m3/d)

Feed Spacer Thickness mil

TM810V

4”

73(7)

99.8

1,900(7.2)

28
[/custom-specifications]
[custom-features]

Features

Operating Limits

  • Maximum Operating Pressure: 1200psi (8.3 MPa)
  • Maximum Feed Water Temperature: 113°F (45℃)
  • Maximum Feed Water SDI15: 5
  • Feed Water Chlorine Concentration: Not Detectable
  • Feed Water pH Range, Continuous Operation: 2-11
  • Feed Water pH Range, Chemical Cleaning: 1-12
  • Maximum Pressure Drop per Element: 20psi (0.14 MPa)
  • Maximum Pressure Drop per Vessel: 60psi (0.4 MPa)





[/custom-features]
[custom-usage] [/custom-usage]
[custom-documents]Toray TM810V Membrane [/custom-documents]
