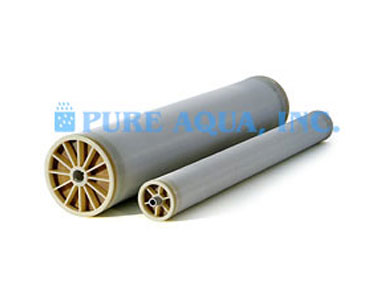

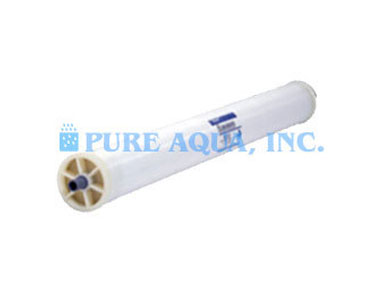

Toray TM740-1760 Membrane

Product Description

Membrane Type

  • Cross Linked Fully Aromatic Polyamide Composite

Test Conditions

  • Feed Water Pressure: 225 psi(1.55MPa)
  • Feed Water Temperature: 77°F(25℃)
  • Feed Water Concentration: 2,000 mg/l Nacl
  • Recovery Rate: 15%
  • Feed Water pH: 7
  • Minimum Salt Rejection: 99.0%
Minimum Product Flow Rate
  • 35,700gpd(135m3/d)
[custom-specifications]



Type

Diameter Inch

Membrane Area ft2(m2)

Salt Rejection %

Product Flow Rate gpd(m3/d)

Feed Spacer Thickness mil

TM740-1760

16”

1,760(164)

99.7

44,600(169)

28

[/custom-specifications]
[custom-features]

Features:

Operating Limits

  • Maximum Operating Pressure: 600psi (4.1 MPa)
  • Maximum Feed Water Temperature: 113°F (45)
  • Maximum Feed Water SDI15: 5
  • Feed Water Chlorine Concentration: Not Detectable
  • Feed Water pH Range, Continuous Operation: 2-11
  • Feed Water pH Range, Chemical Cleaning: 1-12
  • Maximum Pressure Drop per Element: 20psi (0.14 MPa)
  • Maximum Pressure Drop per Vessel: 60psi (0.4 MPa)



[/custom-features]
[custom-usage] [/custom-usage]
[custom-documents]Toray TM740-1760 Membrane [/custom-documents]
