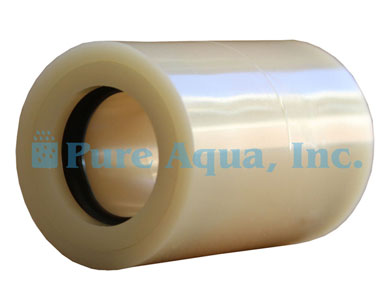

Hydranautics SWC-4014 Membrane

Product Description

SWC-4014 is an excellent seawater desalination membrane. All of Hydranautic's membrane formulations are designed to accommodate varying levels of seawater salinities worldwide with reliable field-proven performance. Hydranautics has over two decades of experience in desalination and over 1.7 million cubic meters (461 million gallons per day) of seawater treated by their SWC (seawater composite) membranes.

[custom-specifications]
SWC-4014 Specifications:
  • Permeate Flow: 370gpd (1.4 m3/d)
  • Salt Rejection: 99.4% (99.0% minimum)
  • Configuration: Spiral Wound
  • Membrane Polymer: Composite Polyamide
  • Membrane Active Area: 16.8 ft2

Elements are wet tested for quality assurance using the following conditions (Data taken after 30 minutes of operation):

  • 32000 PPM NaCl solution
  • 800 psi (5.5 MPa) Applied Pressure
  • 77°F (25°C) Operating Temperature
  • 10% Permeate Recovery
  • 6.5 – 7.0 pH Range
[/custom-specifications]
[custom-features]
Standard Operating Limits:
  • Maximum Applied Pressure: 1,000 psig (6.9 MPa)
  • Maximum Chlorine Concentration: < 0.1 PPM
  • Maximum Operating Temperature: 113°F (45°C)
  • pH Range - Continuous (Cleaning): 3.0 –10.0
  • Maximum Feedwater Turbidity: 1.0 NTU
  • Maximum Feedwater SDI (15 mins): 4.0
  • Maximum Feed Flow: 12 GPM (45.4 l/m)
  • Minimum Ratio of Concentrate to Permeate Flow for any element: 5:1
  • Maximum Pressure Drop for Each Element: 10 psi

The limitations shown here are for general use. For specific projects, operating at more conservative values may ensure the best performance and longest life of the membrane. See Hydranautics Technical Bulletins for more detail on operation limits, cleaning pH, and cleaning temperatures.

[/custom-features]
[custom-usage]
  • Seawater Desalting
  • Broad Offering of Membrane Formulations Designed to Accommodate Varying Levels of Seawater Salinities Worldwide
[/custom-usage]
[custom-documents] [/custom-documents]
Models
Features
Applications
Docs
Videos
Reviews
(1 review) Write a Review
  • 5
    our favorite supplier

    Posted by Stevan W. on Sep 23rd 2019

    Will buy these membranes again!
