Filtration System 202,900 GPD - Venezuela

Product Description

Pure Aqua manufactured and supplied a complete filtration system including Multi media, carbon filter, and water softeners, to a major company in Venezuela. The system was designed to for 202,900 GPD.

Since its startup, the water filtration plant has been running smoothly with minimal trouble-shooting. For satisfactory results, the package took advantage of the following grades of media: Silica Sand, Anthracite, Activated Carbon, and Resin.

Multi-media filters are tasked with the removal of suspended particles from water and service feed water with a turbidity of up to 20 NTU.  During filtration, tiny particles move downwards towards smaller and finer media levels. The cracks within these filters trap particles as small as 10 microns. The larger particulates that were rejected are trapped on top of the filtration bed. Activated carbon filtration systems take advantage of carbon because it draws attention to chemicals and impurities. Carbon is composed of a little electro-positive charge that draws contaminants negative ions toward the surface when water is passed over the positively charged carbon surface.

A Water Softener is designed and built to remove minerals that cause hardness in water. It is highly recommended to use a water softener to refrain from negative outcomes such as clogged pipes, damaged boilers, and heated exchangers. Household, commercial, and industrial water systems suffer greatly from lime scale deposits as a result of hard water. Lime scale build-up can cause pipes to clog up and decreases the efficiency of hot boilers, tanks, and laundry machines. Water softener systems are designed to improve the work and extend the life span of laundry machines, pipelines, solar heating systems, air conditioning units and many other water-based applications.

June 2012

Country: Venezuela

System/Product: Filtration System

Flow Rate: 202,900 GPD

Components & Brands:
-  Multimedia filter
- Carbon filter
- Water softeners




[custom-specifications]



[/custom-specifications]



[custom-features]





[/custom-features]



[custom-usage]



[/custom-usage]

[custom-documents]Filtration System 202,900 GPD - Venezuela - Case Study [/custom-documents]
Available Models
Product Features
Applications
Product Documents & Data Sheets
Product Videos
Pure Aqua| Water Filtration Package Venezuela 202,900 GPD 00:50

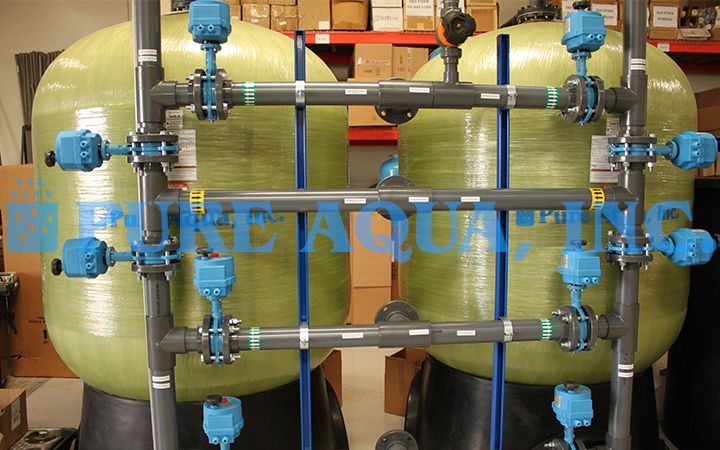

Pure Aqua, Inc. designs and manufactures water treatment systems in addition to water filtration packages. In April 2012, Pure Aqua successfully manufactured and supplied a water filtration package to a major company in Venezuela to remove particulates, chlorine, organics, odor, and hardness from well water. The water filtration plant is composed multimedia, activated carbon, and water softeners. The multi-media and activated carbon filters are both twin-alternating and were selected from our MF-600 Series and both used 63" diameter FRP tanks. The capacity of this package is about 202,900 GPD. For more information click here: http://www.pureaqua.com/water-filters-industrial-commercial-media-filters-mf-600.html#
