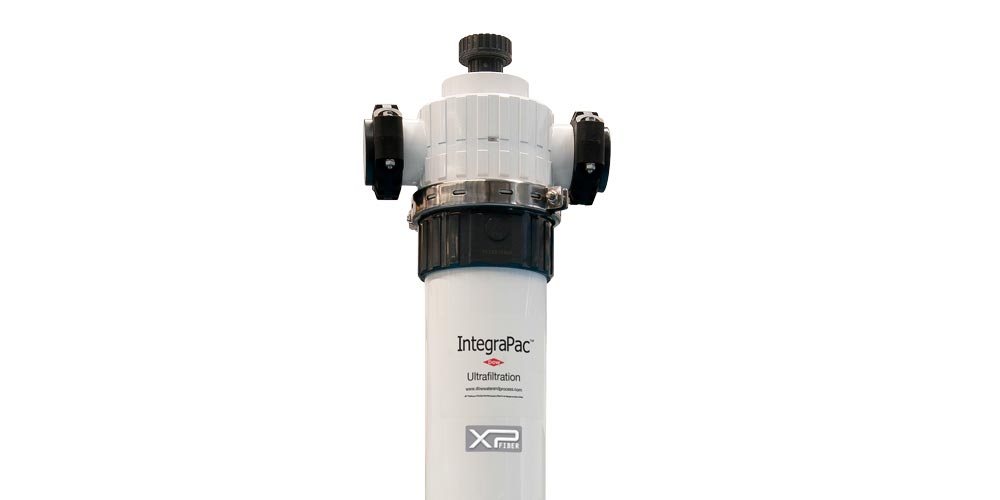

DOW FILMTEC SFP-2860 Ultrafiltration Modules

Product Description

The SFP series of the DOW ultrafiltration modules are built with robust outside-in PVDF fiber technology. The hollow fibers feature high clean-ability, low chemical consumption, high recovery, and a superior combination of mechanical properties and chemical resistance. It offers customers a proven product with a long list of installations world-wide.

DOW ultrafiltration SFP-2860 offers high membrane active area with a height that enables containerized system design.

Advantages

Excellent removal of colloids, particles, and bacteria
Low chemical consumption
Ability to treat challenging feed water with limited pretreatment
High chemical-resistance PVDF that allows aggressive chemical use for treating challenging water when needed
Mechanically strong fibers enabling long module life

Important Information

Proper start-up of a UF system is essential to prepare the membranes for operating service and to prevent membrane damage. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration and other system checks should be completed. Please refer to the product technical manual.

Operation Guidelines

Avoid any abrupt pressure variations during start-up, shutdown, cleaning or other sequences to prevent possible membrane damage. Flush the UF system to remove shipping solution prior to start up. Remove residual air from the system prior to start up. Manually start the equipment. Target a permeate flow of 60% of design during initial operations. Depending on the application, permeate obtained from initial operations should be discarded. Please refer to the product technical manual.

General Information

If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty (Form No. 795-00027) will be null and void.
To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.

[custom-specifications]

Specifications

Model	Type	Part Number	Membrane Area		Module Volume		Weight (empty/water filled)
Model	Type	Part Number	m²	f²	liters	gallons	kg	lbs
SFP-2860	Pretreatment	280933	51	549	35	9.3	48/83	106/183

[/custom-specifications]

[custom-features]

The DOW™ Ultrafiltration (UF) modules are made from high strength, hollow fiber membranes that have excellent features and benefits:

0.03 μm nominal pore diameter for removal of bacteria, viruses, and particulates including colloids to protect downstream processes such as RO
PVDF polymeric hollow fibers for high strength and chemical resistance allows long membrane life
Hydrophilic PVDF fibers for easy cleaning and wettability that help maintain long term performance
Outside In flow configuration for high tolerance to feed solids that help reduce the need for pretreatment processes
U-PVC housing, helping to eliminate the need for costly pressure vessels

This module is an ideal choice for systems with capacities greater than 50 m³/hr (220 gpm). The larger, 8 inch diameter module offers the highest effective membrane area of the DOW UF modules, which contributes to a more economical membrane system design. The shorter, 60 inch length module offers higher efficiencies over a wider range of feed water conditions compared to longer length modules. DOW Ultrafiltration Modules can be used for a wide variety of treatment applications such as surface water, seawater, industrial wastewaters, and secondary effluent wastewater.

Operating Parameters
	SI units	US units
Filtrate Flux @ 25°C	40 - 120 l/m²/hr	24 - 70 gfd
Flow Range	2.0 . 6.1 m³/hr	9.2 . 26.7 gpm
pH, Operating	2-11
Temperature	1 - 40°C	34 - 104°F
Max. Inlet Module Pressure (@ 20°C)	6.25 bar	93.75 psi
Max. Operating TMP	2.1 bar	30 psi
Max. Operating Air Scour Flow	12 Nm3/hr	7.1 scfm
Max. Backwash Pressure	2.5 bar	36 psi
NaOCl (max)	2,000 mg/L
TSS (max)	100 mg/L
Turbidity (max)	300 ntu
Particle Size (max)	300 um
Flow Configuration	Outside In, Dead End Flow
Expected Filtrate Turbidity	< 0.1 NTU
Expected Filtrate SDI	< 2.5
