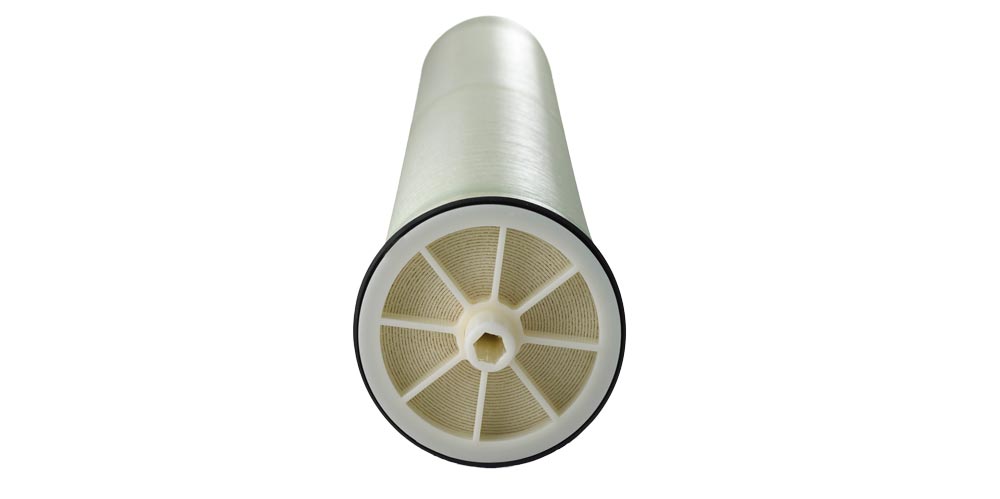

DOW FILMTEC RO-4040-FF Membrane

Product Description

DOW FILMTEC RO-4040-FF reverse osmosis membrane elements deliver high flux and exceptional quality water for applications requiring sanitary grade membrane elements. The full-fit configuration minimizes stagnant areas and is an ideal choice for applications requiring a sanitary design. All components comply with U.S. Food & Drug Administration standards.

Uses for RO-4040-FF Membrane Elements

Advantages

  • High flux rates
  • Full-fit design
  • Consistent quality from automated rolling
  • FilmTec performance and quality

Important Information
Proper start-up of reverse osmosis water treatment systems is essential to prepare the membranes for operating service and to prevent membrane damage due to overfeeding or hydraulic shock. Following the proper start-up sequence also helps ensure that system operating parameters conform to design specifications so that system water quality and productivity goals can be achieved. Before initiating system start-up procedures, membrane pretreatment, loading of the membrane elements, instrument calibration and other system checks should be completed. Please refer to the application information literature entitled “Start-Up Sequence (Form No. 609-00298) for more information.

Operation Guidelines
Avoid any abrupt pressure or cross-flow variations on the spiral elements during start-up, shutdown, cleaning or other sequences to prevent possible membrane damage. During start-up, a gradual change from a standstill to operating state is recommended as follows:

  • Feed pressure should be increased gradually over a 30-60 second time frame.
  • Cross-flow velocity at set operating point should be achieved gradually over 15-20 seconds.
  • Permeate obtained from first hour of operation should be discarded.

General Information

  • Keep elements moist at all times after initial wetting.
  • If operating limits and guidelines given in this bulletin are not strictly followed, the limitedwarranty will be null and void.
  • To prevent biological growth during prolonged system shutdowns, it is recommended thatmembrane elements be immersed in a preservative solution.
  • The customer is fully responsible for the effects of incompatible chemicals and lubricantson elements.
  • Maximum pressure drop across an entire pressure vessel (housing) is 60 psi (4.1 bar).
  • Avoid permeate-side backpressure at all times.



[custom-specifications]

Specifications

Product Part Number Active Surface Area ft2 (m2) Stabilized Permeate Flow Rate gpd (m3/d) Typical Stabilized Salt Rejection (%)
RO-4040-FF 84286   2,400 (9.1) 99.5
[/custom-specifications]
[custom-features]

Features

DOW FILMTECTM RO reverse osmosis membrane elements deliver high flux and outstanding quality water for applications requiring sanitary grade membrane elements. The full-fit configuration minimizes stagnant areas and is optimal for applications requiring a sanitary design. All components comply with FDA standards.

Operating Limits

  • Membrane Type Thin-Film Composite
  • Maximum Operating Temperature 113°F (45°C)
  • Maximum Operating Pressure 600 psi (41 bar)
  • Maximum Differential Pressure 15 psi (1.0 bar)
  • Maximum Feed Turbidity 1 NTU
  • Free Chlorine Tolerance Below Detectable Limits
  • pH Range, Continuous Operation 3 – 10
  • pH Range, Short-Term Cleaning (30 min.) 1 – 12
  • Maximum Feed Silt Density Index (SDI) 5
[/custom-features]
[custom-usage]

Ideal Applications Include:

  • Medical applications
  • Sanitary uses
[/custom-usage]
[custom-documents]DOW FILMTEC RO-4040-FF Membrane [/custom-documents]
