Clack Pressure Mineral Tanks

Clack Pressure Mineral Tanks
Product Description

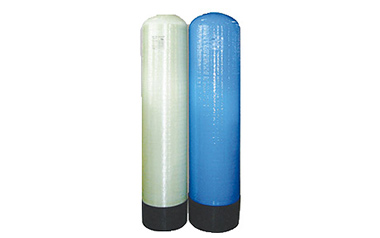

Clack Mineral Tanks are made of high density polyethylene (HDPE) plastic liner with composite fiberglass filament winding over the liner. Clack's design provides a continuous seamless inner liner with a glass filled polypropylene inlet for higher strength and pressure capabilities.

[custom-specifications]

Mineral Tanks Specifications:
Tank Size (Inches) Opening Diameter (Inch/mm) Height with Base (Inch/mm)

Capacity

Gallons

Capacity Liters

Capacity

Cubic Feet

 Empty Tank Weight With Base (Lbs/Kg)

Quantity per

Bulk Pack

8x35* 2.5/63.5 34.9/886 6.7 25.5 0.90 8.1/3.7 18
8x44 2.5/63.5 44.2/1123 8.6 32.5 1.15 9.8/4.4 18
9x18* 2.5/63.5 18.4/467 3.9 14.8 .52 5.1/2.3 9
9x35* 2.5/63.5 34.8/884 8.2 31.0 1.09 9.5/4.3 16
9x48 2.5/63.5 48.3/1227 11.5 43.7 1.54 12.5/5.7 16
10x18* 2.5/63.5 18.4/468 4.75 18.0 .64 6.3/2.9 8
10x35* 2.5/63.5 35.0/889 10.2 38.8 1.37 10.4/4.7 16
10x40 2.5/63.5 40.6/1031 12.0 45.5 1.61 11.7/5.3 16
10x44 2.5/63.5 44.3/1125 13.2 50.1 1.77 12.4/5.6 16
10x47 2.5/63.5 47.2/1199 14.2 53.8 1.90 13.1/5.9 16
10x54 2.5/63.5 54.4/1382 16.0 60.6 2.14 15.0/6.8 16
12x35* 2.5/63.5 35.4/900 14.60 55.3 1.95 15.4/7.0 9
12x52 2.5/63.5 52.8/1341 23 86.6 3.1 19.7/8.9 9
13x54 2.5/63.5 55/1397 28 105.4 3.7 22.5/10.2 9
14x65 2.5/63.5 65.6/1666 39.4 149.2 5.27 37.5/17 1
14x65 4/101.6 65.6/1666 39.4 149.2 5.27 37.5/17 1
16x53 2.5/63.5 54/1371 41.0 155.2 5.48 41/18.6 1
16x65 4/101.6 65.6/1666 51.2 193.8 6.85 42.75/19.4 1
18x65 4/101.6 67.7/1720 73.5 278.1 9.83 52.5/23.8 1
21x62 4/101.6 67.8/1722 89.6 339.1 11.98 75.75/34.4 1
24x72 4/101.6 73.6/1869 120 464.1 16.39 98.25/44.6 1
30x72 4/101.6 72.2/1884 189.1 715.8 25.28 116/52.6 1

*Available with or without base.
Note: All data is for reference only and is subject to change without notice.

[/custom-specifications]

[custom-features]

  • For water softener and filtration applications
  • Capacities from 6.7 to 189.1 gallons
Material of Construction
  • Inner liner high density polyethylene
  • Threaded inlet glass filled polyethylene
Operating Parameters
  • Maximum Operating Pressure: 150 psi
  • Maximum Operating Temperature: 120 F
Colors Available
  • Almond
  • Black
  • Blue
  • Grey
  • Natural

[/custom-features]

[custom-usage]

  • Media Filters
  • Carbon Filters
  • Water Softener
  • Ion Exchange

[/custom-usage]

[custom-documents]
Clack Pressure Mineral Tanks Data Sheet
 [/custom-documents]
