Big Blue Filter Housings

Product Description

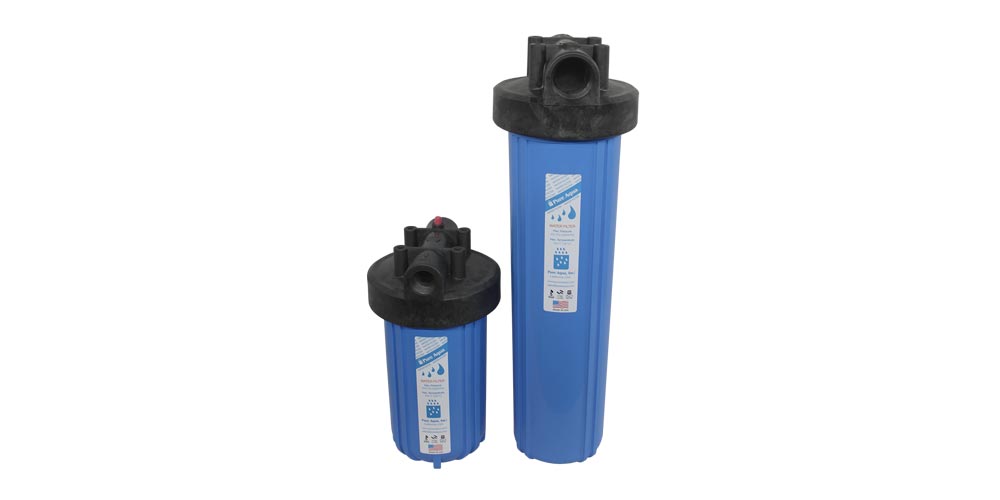

10” and 20” Big Blue Filter Housings

Pure Aqua’s 10” and 20” Big Blue filter housings are constructed of a durable reinforced polypropylene or clear Styrene-Acrylonitrile (SAN). Pure Aqua’s line of Big Blue filter housings are available in many styles and connections sizes. Pure Aqua’s housings will accommodate a wide range of 4.5” diameter cartridges. The reinforced polypropylene cap offers an optional pressure-relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.


[custom-specifications]

Material (housing) Polypropylene
Material (cap) Reinforced polypropylene
Material (o-ring) Buna-N
Material (pressure relief)

300-series stainless steel, EPDM, and
polypropylene

Maximum temperature 100°F (37.8°C)
Maximum pressure

#10 Big Blue – 100 psi (6.9 bar)
#20 Big Blue – 90 psi (6.2 bar)



10” Length (4.5” Diameter)

Part Number Description Inlet Size (in) Outlet Size (in)
BBH-1034 Blue 10” 3/4” 3/4”
BBH-101 Blue 10” 1” 1”
BBH-1015 Blue 10” 1.5” 1.5”



20” Length (4.5” Diameter)



Part Number Description Inlet Size (in) Outlet Size (in)
BBH-201 Blue 20” 1” 1”
BBH-2015 Blue 20” 1.5” 1.5”



NOTE: The housings are available with and without the pressure relief, please add PR to the end of a part number for pressure relief option.

[/custom-specifications]

[custom-features]

Features & Benefits

  • Easy installation
  • Thick walls for increased strength
  • Leak-proof seal
  • Wide range of connection sizes
  • Easy maintenance
  • Durable construction

[/custom-features]

[custom-usage]

Applications

  • RO pre-filtration
  • RO post-filtration
  • Food & beverage industry
  • UV pre-filtration
  • Residential
  • Commercial
  • Industrial

[/custom-usage]

[custom-documents]Big Blue Filter Housings Data Sheet [/custom-documents]
